Most people are familiar with the basic function of a measuring tape: to measure lengths and distances. However, many may not notice the small black diamond symbols that appear at regular intervals along the tape. These markings are not decorative; they serve a specific purpose in construction and carpentry.
What Are the Black Diamonds?

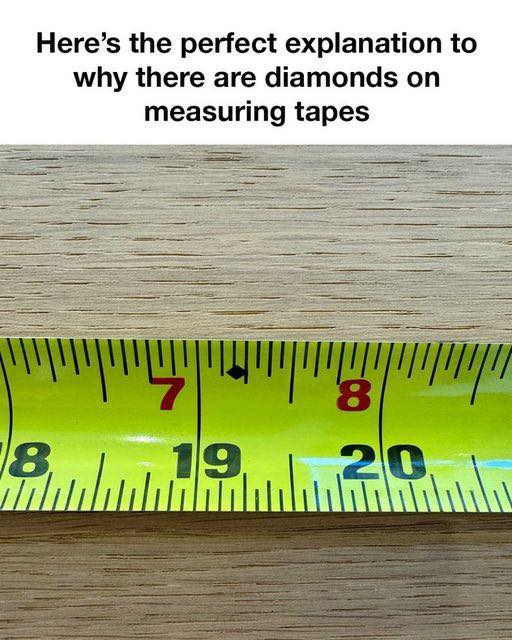

The black diamonds on a measuring tape are known as “truss marks” or “black truss indicators.” They are typically found at intervals of 19.2 inches along the tape. This specific spacing is used in construction to indicate the placement of floor trusses or joists when five are evenly spaced within an eight-foot span. This method allows for efficient material usage and structural integrity in building projects.
Why 19.2 Inches?
The choice of 19.2 inches as the spacing interval is based on the “eight-foot rule” commonly used in construction. An eight-foot length equals 96 inches; dividing this by five yields 19.2 inches. By placing trusses or joists at every 19.2 inches, builders can evenly distribute five supports across an eight-foot span, which is a standard length for many building materials like plywood and drywall.
Benefits of Using Black Diamond Markings
Utilizing the black diamond markings on a measuring tape offers several advantages:
- Efficient Material Usage: By spacing supports at 19.2 inches, builders can use fewer joists or trusses without compromising structural integrity, leading to cost savings.
- Simplified Layout: The markings provide a quick reference for placing supports, reducing the need for complex calculations or additional measuring tools.
- Consistency: Using standardized spacing ensures uniformity in construction, which is crucial for the stability and appearance of the finished structure.

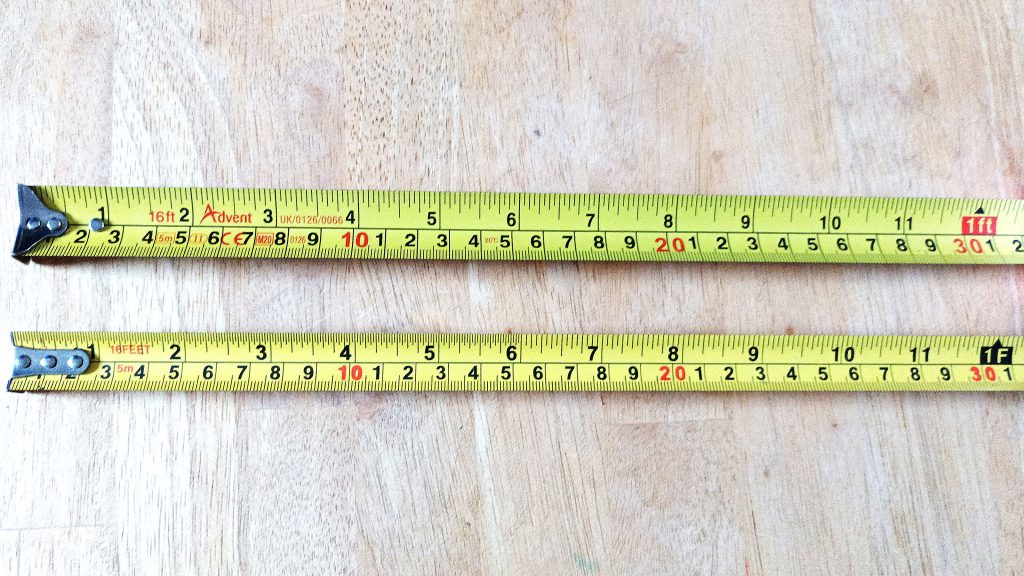

Other Common Tape Measure Markings
In addition to the black diamonds, measuring tapes often feature other markings to assist builders:
- Red Numbers or Boxes: These typically appear at 16-inch intervals, indicating standard stud spacing in wall framing. This spacing aligns with the width of common building materials, facilitating easier installation.
- Foot and Inch Markings: Standard numerical indicators help measure lengths in feet and inches, essential for various construction tasks.
- Understanding these markings enhances accuracy and efficiency in building projects.
Useful for DIY Projects Too
While these black diamonds are primarily used in professional construction, they’re also extremely helpful for home DIY projects. If you’re building a deck, framing a shed, or installing flooring, understanding these marks can make the difference between a shaky result and a solid build. Many homeowners don’t realize that these subtle indicators can save time on layout and help avoid measurement errors. Knowing how to use every marking on a tape measure maximizes the tool’s potential — and helps make any project look and perform more professionally.
Conclusion
The black diamond symbols on a measuring tape are more than mere decorations; they are practical tools designed to aid in the precise placement of structural supports in construction. By recognizing and utilizing these markings, builders and DIY enthusiasts can improve the efficiency and accuracy of their projects. Next time you use a measuring tape, take note of the black diamonds—they’re there to help you build better.
